Home >> Products >>Bolts Weighing >> Bolts Weighing and Packing
Product Detail

Bolts Weighing and Packing

Collect
Description

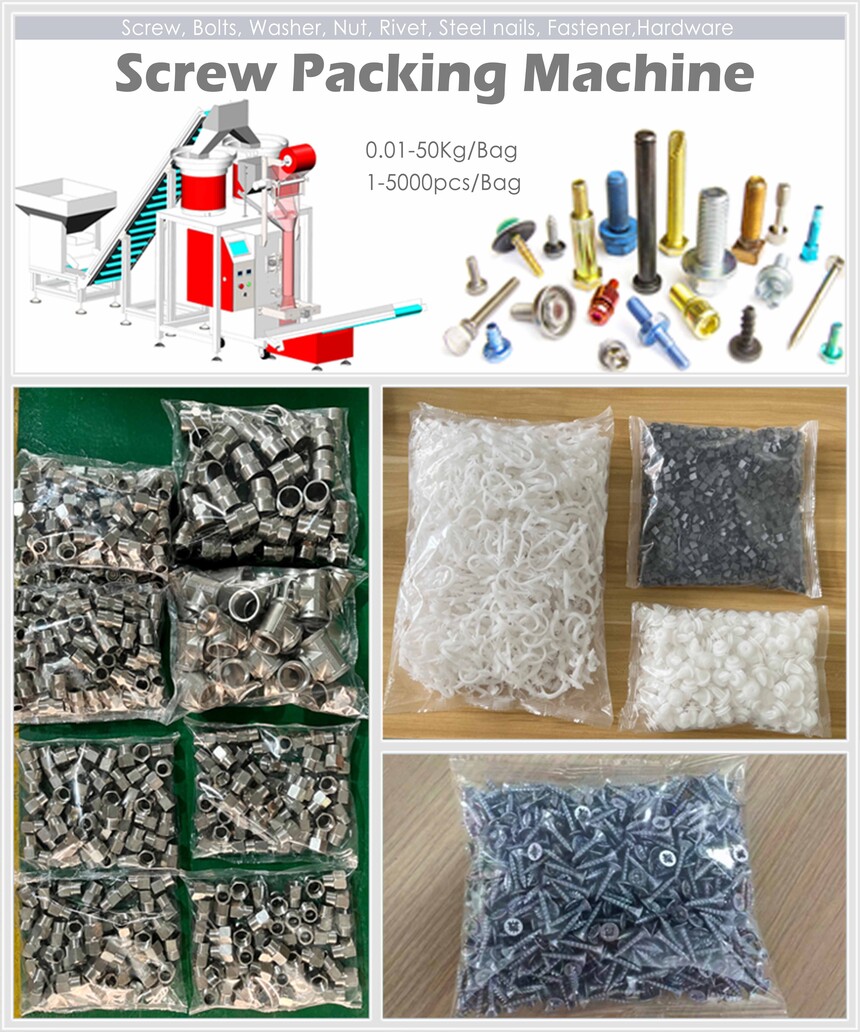

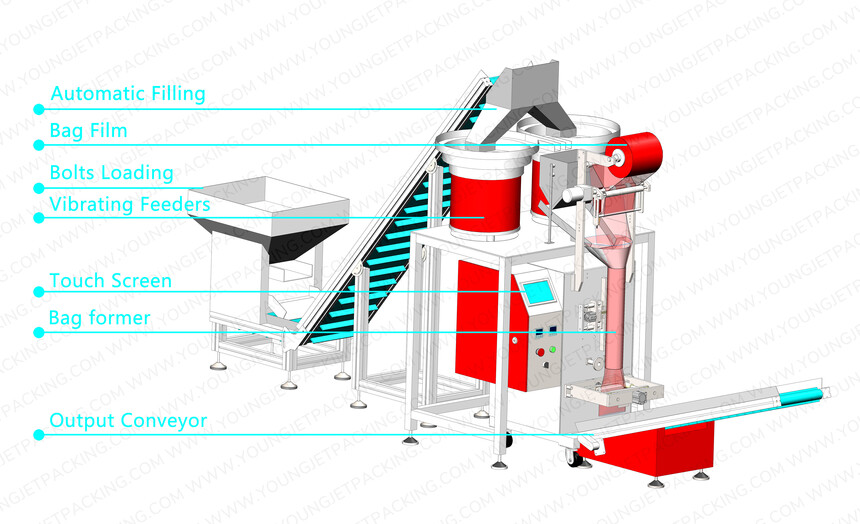

Automatic Bolts/Screw/Nut/Washer Weighing&Packing Machine

0.1-50KG

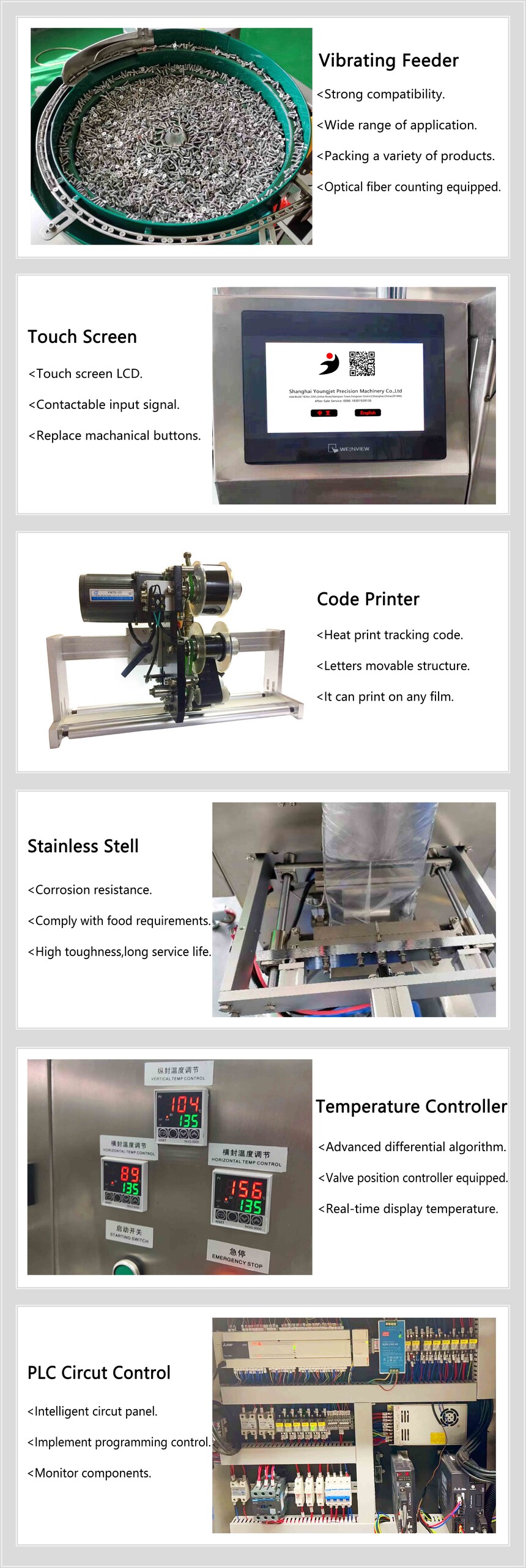

•Suitable for PE, OPP/PE, OPP/CPP, PET/PE Film Packaging.

•The servo motor drives the heat sealing film, stable and reliable, high precision.

•PLC control can be easily set on the touch screen control panel to adjust the packaging parameters.

•Visual display of production information and error alarm, automatic diagnosis,safe and easy to operation&maintenance.

•High sensitivity automatic electric eye tracking positioning printing cursor.

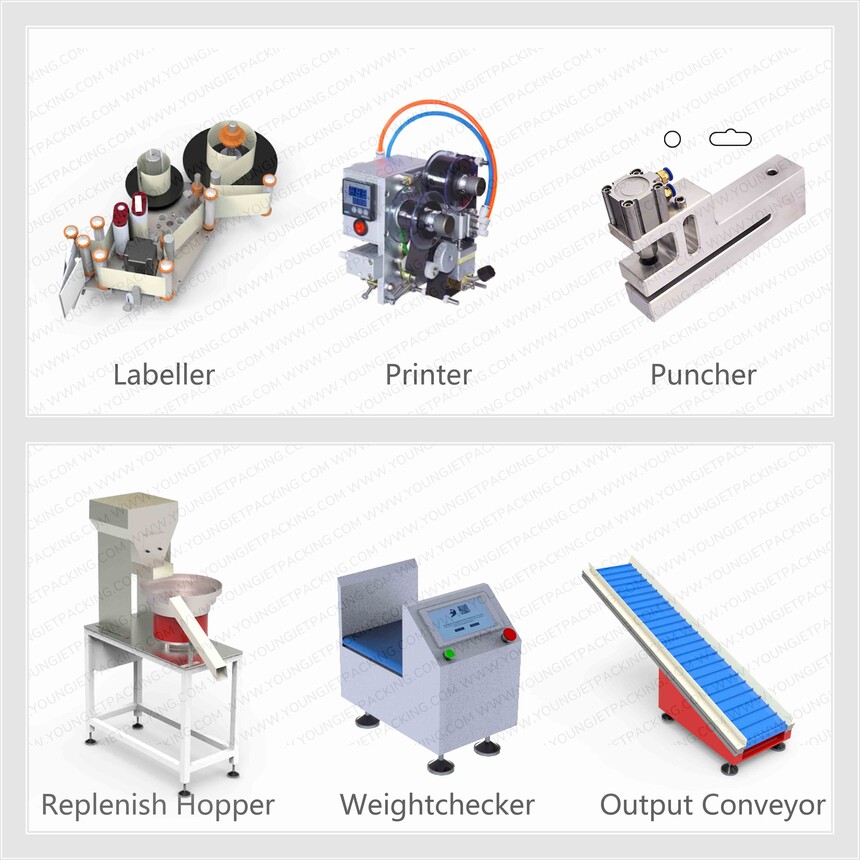

•Augmentation: More equipment can be added to the machine at customer's demand.


202301 youngjet screw packing.jpg

Application

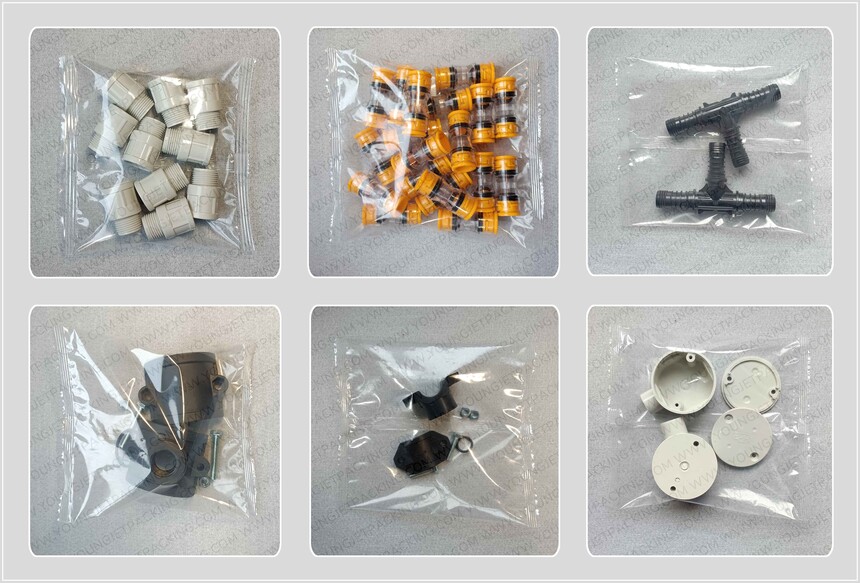

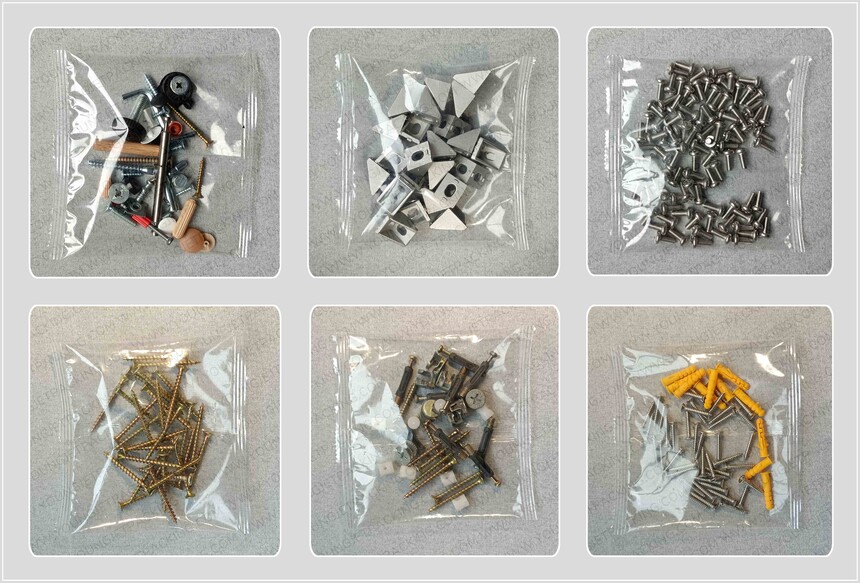

The system is applicable for quantitative product packaging of screws,Bolts,Nuts,Washer, hardware accessories, plastic accessories and other granular, flaky, irregular-shape products.

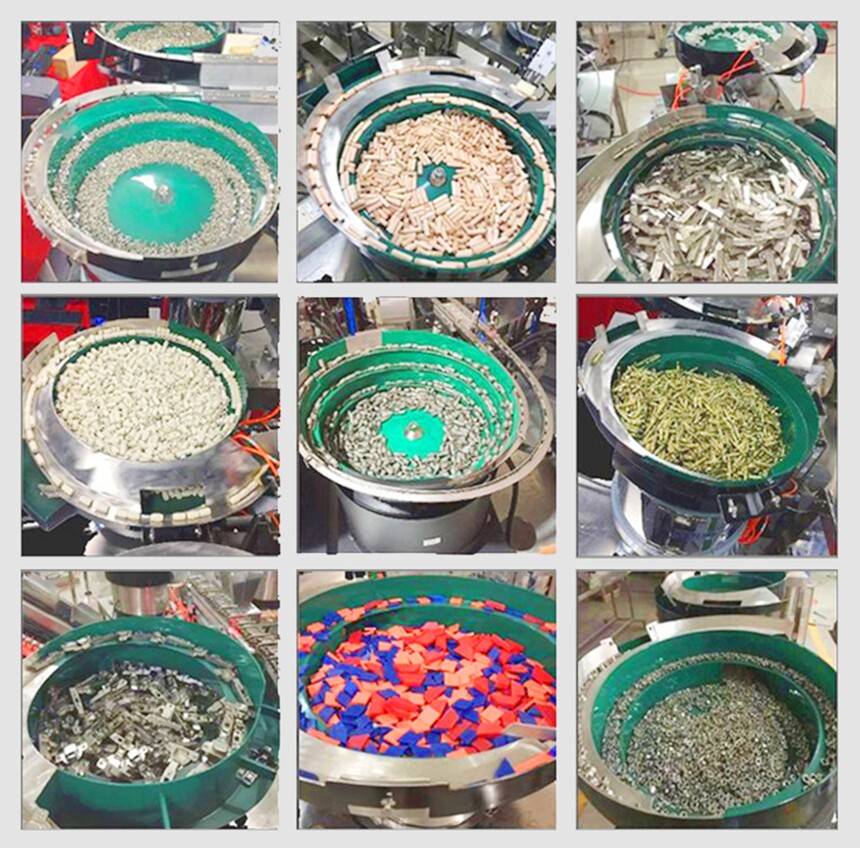

Vibrating Feeder Filling for Weiging and Counting

Bag Packing

Bag Style Optional

Youngjet screw packing machine bag size.jpg

Technical Parameter

Model No.:YJ-CW450
Pouch Size:L50-300mm W40-200mm
Packing Speed:   1-50Bags/min
Power: AC200-240V; 50/60HZ; 1-2.9KW
Air Source:0.4-0.6MPa
Machine Size: L1100xW700xH1600mm
Weight:350kg

Packing machine assembly&debugging


20230206 youngjet screw packing machine Factory.jpg

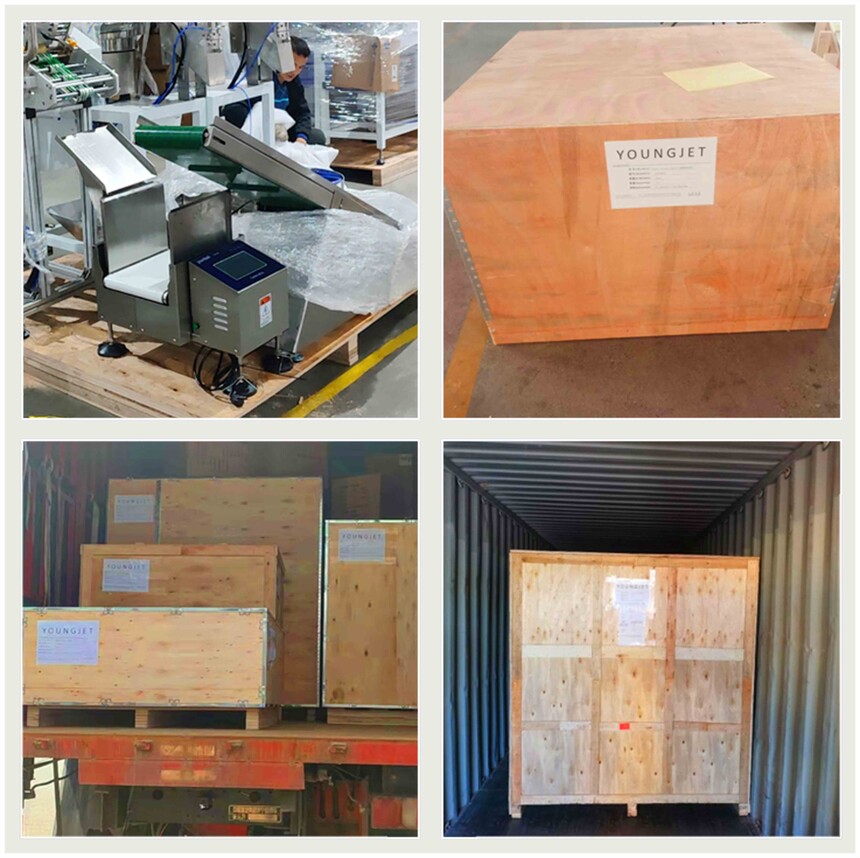

Standard Plywood Package

2023 wooden packing.jpg

>>FAQ

Q1: How to find a Packing machine suitable for my products?

Tell us about your product details and packing requirements.

1. What kind of product you would liek to pack?

2. The bag/sachet/pouch size of you need for the product packing ( the length, width).

3. The weigh of each package.

4. The requirement for the machines and the bag style.

Q2: Is engineer available to serve oversea?

Yes, but the travel fee is responsible by you.

In order to save cost, we will send you a video of full details about the machine installation and assist you till the machine running smoothly.

Q3. How can we make sure about the machine quality after placking the order?

Before delivery, we will send you the pictures and videos to check the machine quality.

And also you can arrange for quality checking by yourself or your friends in China.

Q4. Can you explain me the whole transaction process ?

1.Sign the Contact

2.Arrange 50% deposit to our factory

3.Factory arrange manufacture

4.Testing & detecting the machine before shipping

5.Inspected by customer or third agency through online or site test.

6.Arrange the balance payment before shipment.

Q5: Will you provides the delivery service?

A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.

Youngjet screw packing machine optional.jpg
